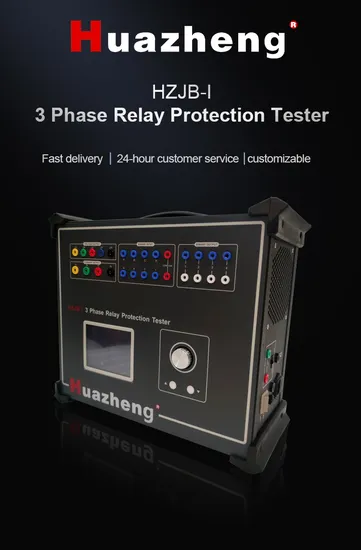

High Accuracy Electrical Secondary Current Injection Tester/Relay Test Set

Basic Info.

Model NO.	HZJB-I
Type	Universal Testing Machine
Maxcapacity	3 Phase
Accuracy Grade	0.5
Load Way	Electronic Load
Loading Method	Static Load
Display	Digital
Control	Computer Control
Weight	0-100Kg
Power Source	AC220V
Oil Cylinder Position	No
Usage	3 Phase Relay Protection Tester
Work Power	110V-400V Adjustable
Power Frequency	50±1Hz
Phase	0--360 °
Power Capacity	300va / Phase
Line Voltage Range	0--250V
Power	AC220V ± 10% 50Hz 10A
Environment Humidity	≤90%Rh
Work Temperature	-10°c~ 50°c
Certificate Standard	ISO Ce
Transport Package	Standard Carton/ Box
Specification	CE/ISO/IEC
Trademark	HuaZheng
Origin	Baoding, Hebei
HS Code	9030820000
Production Capacity	500set /Year

Packaging & Delivery

Package Size60.00cm * 51.00cm * 31.00cm Package Gross Weight28.000kg

Product Description

High Accuracy Electrical Secondary Current Injection Tester/Relay Test Set

I.Introduction

Relay protection microcomputer test device plays a key role in operating electricity power systems reliably and safely. It is the testing device used in professional field of microcomputer protection, relay protection, excitation measurement, fault recorder.

II.Main Features

The standard output of 4 phases of voltage and 3 phases of current
The stand-alone operation is convenient
Dual operation model, connect computer for work
Strong function of software
The amount of switch quantity contacts is rich
Large LCD screen
Self-protection
Independent DC power output
Cost-effective

III.Technical Data

High Accuracy Electrical Secondary Current Injection Tester/Relay Test Set

IV.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are Safety Products, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.

V. Our Services
1. Good after sales service: Any small problem happening will be solved at the most prompt time;
2. We have many years of experience, we have specializing in fastener;
3. Specifications list is available upon your request
4. Welcome to send enquiry,we will reply soon.If you want to know more,pls feel free to contact us.
5. Prompt shipment with professional documents
6. Packing as your request, with photo before shipment
7. High quality and competitive price
8. All the product quality are under strict controll and offer good service.
9. Our produts now are known by lots of our domestic customers and oversea clients.

VI.Customer Visit

VII.Exhibition

VIII.Similar Recommendation

3 Phase Relay Protection Tester
Alternating Current Output:
Output accuracy	0.5 magnitude
Phase current output (effective value)	0~40A
Three parallel phase current output (effective value)	0~120A
Phase current value with long time under permission (effective value)	10A
Phase current maximum power output	420VA
Three parallel phase current maximum power output	900VA
Three parallel phase current maximum work time	10s
Frequency range (base wave)	20~1000Hz
Harmonic frequency number	1~20 time(s)
Direct Current Output:
Output accuracy	0.5 magnitude
Current output	0~±10 A/each phase, 0~±30 A/every three parallel
Maximum output of load voltage	20v
Alternating Voltage Output:
Output accuracy	0.5 magnitude
Phase voltage output (RMS)	0~120v
Line voltage output (RMS)	0~240v
Phase voltage/line voltage power output	80VA/100VA
Frequency range (base wave)	20~1000Hz
Harmonic frequency number	1~20 time(s)
Direct voltage output:
Output accuracy	0.5 magnitude
Phase voltage output amplitude	0 ~ +160v
Line voltage output amplitude	0 ~ +320v
Phase voltage/line voltage power output	70VA/140VA
The Switch Quality and Time Measurement
Switch parameters input - 7 ways	Empty contact: 1~20mA, 24v
Switch parameters input - 7 ways	Power contact access:"0": 0~+6V;"1": +11V~+250V
Switch parameters output - 2 couples	DC: 220V/0.2A;AC: 220V/0.5A
Measuring range	0.1ms ~ 9999s
measuring accuracy	0.1ms
Volume and weight
Appearance and size	400×300×180 (mm)
Weight of a single machine	22kg
Supply power	AC 220V±10%,50/60Hz
Environmental temperature	-10ºC~ +50ºC
